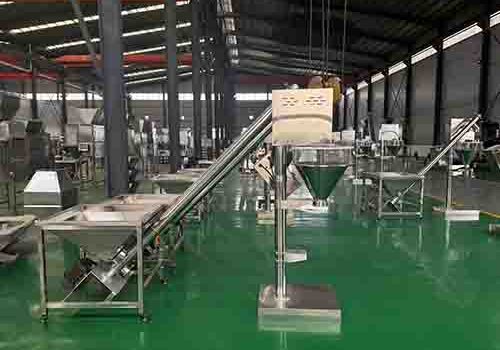

Auger Filling Machine
MeltVista Auger Filling Machine is a high-precision filling solution specifically designed for powders and granular materials. It is suitable for a wide range of packaging formats, such as bags, bottles, and cans, and is widely used in industries like food, pharmaceuticals, and chemicals.
The machine operates using an auger screw mechanism that steadily draws materials from the hopper and fills them evenly into containers. This design ensures smooth filling without clogging, delivering consistent and accurate results. It supports a filling speed of 1–40 units per minute, with a filling range from 10 grams up to 10 kilograms. For quantities above 10 kg, customized solutions are available.
Whether you’re working with free-flowing powders or challenging, sticky granules, the MeltVista Auger Filling Machine offers a reliable, efficient, and low-waste automated solution that boosts your productivity and ensures filling precision.
Wide Compatibility
- Versatile Container Adaptability: Compatible with bottles, cans, and pouches.
- Multi-Material Handling: Easily switchable auger system allows filling of powders, granules, and tablets (particle size 0.1–10mm).
- Wide Filling Range: Adjustable dosing from 1g to 10kg per fill.
Smart Control System
- Dual Trigger Modes: Standard photoelectric sensor + optional foot pedal operation.
- Dynamic Compensation Technology: Real-time density monitoring with automatic error correction (±0.3%).
- Multi-Level Alarm System: Visual and audible alerts for out-of-tolerance conditions (up to 3 customizable thresholds).
Precision Adjustment Features
- Stepless Speed Control: Adjustable auger speed from 5 to 300 RPM.
- Selectable Scale Resolution: Four options — 0.1g / 0.5g / 1g / 5g.
- Modular Auger Assembly: Quick-change design allows auger replacement in under 3 minutes.
Stable Feeding System
- Taiwan Silent Motor: Low noise operation (<60dB).
- Anti-bridging Agitator: Frequency-controlled mixing (adjustable from 10–50Hz).
- Food-Grade Contact Parts: Made with 316L stainless steel (Ra≤0.8μm surface finish).
Powder Filling
Such as: protein powder, flour, milk powder, coffee powder, baking soda, chemical powders, etc.Granular Material Filling
Such as: sugar, salt, tea leaves, seeds, pet food, fertilizer granules, small tablets, etc.Non-Free-Flowing or Variable Density Materials
The auger mechanism, combined with optional agitators, ensures smooth and consistent filling even for challenging materials.
Industries Served
| Industry | Example Products |
|---|---|
| Food Industry | Milk powder, protein powder, starch, coffee, salt, spices |
| Pharmaceutical | Medical powders, supplements, granules |
| Chemical | Detergent powders, additives, lab-grade powders |
| Cosmetics | Talcum powder, facial mask powder, bath salts |
| Agriculture | Fertilizer granules, pesticides, seeds, feed additives |
| Construction | Dry mortar, cement additives, grouting powders |
FAQ about Auger Filling Machines
What is an auger filling machine?
An auger filling machine is an automated packaging machine that precisely fills powders, granules, or semi-solid materials (like spices, flour, coffee, or chemicals) into containers (bottles, bags, jars, etc.) using a rotating screw mechanism.
Key Points:
Key Points:
- Used for: Dry/semi-dry products (e.g., protein powder, detergent, pharmaceutical powders)
- Key Feature: Delivers consistent, measurable portions (accuracy typically ±0.5% to ±1%)
- Common Industries: Food, pharmaceuticals, cosmetics, agriculture, and chemicals
How accurate is the Auger filler machine?
The accuracy of an auger filling machine typically ranges from ±0.5% to ±1% of the target fill weight under standard conditions. However, advanced models with load-cell (weight-based) systems can achieve ±0.2% or better.
Key Factors Affecting Accuracy:
Comparison Table:
How to Maximize Accuracy?
Key Factors Affecting Accuracy:
- Material Properties:
- Free-flowing powders (e.g., sugar, salt): Higher accuracy (±0.5%)
- Cohesive/dense powders (e.g., cocoa, protein): May require vibration or agitation to maintain ±1%
- Machine Type:
- Volumetric Auger Fillers (no scale): ±0.5-1% (depends on material density)
- Gravimetric Auger Fillers (with integrated scale): ±0.2-0.5% (real-time weight feedback)
- Fill Size: Smaller fills (e.g., 10g) have slightly higher variance than large fills (e.g., 1kg)
Comparison Table:
| Filler Type | Typical Accuracy | Best For |
|---|---|---|
| Standard Auger | ±0.5-1% | General powders (spices, flour) |
| High-Precision Auger | ±0.2-0.5% | Pharma, premium foods |
| Piston Filler | ±0.1-0.3% | Pastes/thick products |
How to Maximize Accuracy?
- Use pre-conditioned (uniform density) material
- Opt for load-cell-equipped models if ±0.2% is critical
- Regularly calibrate the screw and clean the hopper
What is the principle of auger filling machine?
The operating principle of an auger filling machine is based on controlled volumetric displacement using a rotating helical screw (auger). Here's a concise breakdown:
Core Principle:
Key Components:
Why It Works:
Core Principle:
- Material Entrainment: Powder/granules in the hopper are drawn into the flights (grooves) of the rotating auger screw
- Precise Displacement: Each full rotation of the screw moves a fixed volume of material downward. Fill weight is controlled by adjusting the number of rotations (e.g., 5 rotations = 50g)
- Discharge: Material is pushed through the nozzle into containers (bottles/bags) with minimal dust or spillage
Key Components:
- Auger Screw: Determines volume per rotation (pitch/flight depth)
- Hopper: Holds material (may include agitators to prevent clumping)
- Drive System: Servo/stepper motor for precise rotation control
- Nozzle: Guides material into containers (often with dust seals)
Why It Works:
- Consistency: Each rotation delivers identical volume (if material density is uniform)
- Flexibility: Adjust rotations/speed for different weights (e.g., 10g to 5kg)
- Gentle Handling: Ideal for fragile powders (e.g., flour, milk powder)
How accurate is the Auger filler?
The accuracy of an auger filler depends on its design and application, but here's a clear breakdown:
Standard Auger Fillers (Volumetric)
High-Precision Auger Fillers (Gravimetric)
Key Factors Affecting Accuracy
Comparison to Other Fillers
When to Choose an Auger Filler?
Standard Auger Fillers (Volumetric)
- Typical Accuracy: ±0.5% to ±1% of target fill weight (Example: For a 100g fill, actual weight = 99.5g-101g)
- Best For: Free-flowing powders (salt, sugar, flour) where slight variance is acceptable
High-Precision Auger Fillers (Gravimetric)
- Typical Accuracy: ±0.1% to ±0.3% (Example: For a 100g fill, actual weight = 99.9g-100.3g)
- How?: Uses a real-time load cell to verify each fill and auto-adjust the auger
- Best For: Pharmaceuticals, premium foods, or costly materials (e.g., protein powder, spices)
Key Factors Affecting Accuracy
- Material Properties:
- Free-flowing powders (e.g., granulated sugar) → Higher accuracy (±0.5%)
- Cohesive powders (e.g., cocoa, whey) → May drop to ±1% without agitation
- Fill Size: Small fills (e.g., 10g) are harder to control than large fills (e.g., 1kg)
- Machine Quality: Servo-driven augers outperform basic AC motors. Regular calibration is critical (drift can occur over time)
Comparison to Other Fillers
| Filler Type | Accuracy | Best For |
|---|---|---|
| Auger | ±0.1-1% | Powders/granules |
| Piston | ±0.1-0.5% | Pastes/thick liquids |
| Gravimetric | ±0.05-0.2% | High-value products |
When to Choose an Auger Filler?
- You need moderate-to-high accuracy for dry materials
- Your product is sensitive to compression (e.g., fluffy powders)
- You prioritize speed (augers can fill 100+ containers/minute)
What can an auger filling machine fill?
An auger filling machine is designed to fill dry, semi-dry, and powdered materials with precision. It's especially well-suited for materials that do not flow freely or have variable densities.
Powders:
Granules:
Pellets & Small Particles:
Some auger fillers with interchangeable auger screws can even handle semi-free-flowing and non-free-flowing materials, making them highly versatile for use in industries like food, pharmaceuticals, chemicals, and cosmetics.
Powders:
- Protein powder
- Flour
- Milk powder
- Baking soda
- Coffee powder
- Pharmaceutical powders
- Chemical powders
- Talcum powder
Granules:
- Sugar
- Salt
- Coffee granules
- Detergent granules
- Tea leaves
- Spices
Pellets & Small Particles:
- Dry food pellets
- Seeds
- Fertilizer pellets
- Animal feed particles
Some auger fillers with interchangeable auger screws can even handle semi-free-flowing and non-free-flowing materials, making them highly versatile for use in industries like food, pharmaceuticals, chemicals, and cosmetics.
What is the filling speed?
The filling speed of an auger filling machine typically ranges from 15 to 60 fills per minute, depending on several factors:
Key factors that affect speed:
For example:
High-speed models or custom systems can be optimized for even greater throughput when integrated into automated packaging lines.
Key factors that affect speed:
- Material type: Free-flowing powders fill faster than sticky or dense powders
- Fill volume: Smaller fills take less time than large-volume fills
- Container type: Bottles, pouches, and jars may require different handling times
- Machine configuration: Single-head vs. multi-head, servo-driven vs. mechanical
For example:
- A small-dose auger filler (e.g., for pharmaceuticals) may reach 40-60 fills/min
- A large-capacity filler (e.g., 10-40kg per fill) may operate at 10-25 fills/min
High-speed models or custom systems can be optimized for even greater throughput when integrated into automated packaging lines.
How to choose the type of auger filling machine?
Choosing the right auger filling machine requires evaluating your product, production needs, and operational environment. Here's a step-by-step guide to help you select the best type:
1. Define Your Product Characteristics
2. Determine Production Requirements
3. Select the Machine Type
4. Consider Additional Features
1. Define Your Product Characteristics
| Factor | Questions to Ask | Machine Implications |
|---|---|---|
| Material Type | Powder, granules, or flakes? | Free-flowing powders need standard augers; cohesive materials require agitators. |
| Particle Size | Fine (like flour) or coarse (like salt)? | Fine powders may need vibration to prevent clumping. |
| Bulk Density | Light (0.2 g/cm³) or dense (1.5 g/cm³)? | Adjust auger pitch/flight depth for consistent flow. |
| Hygiene Needs | Food/pharma-grade or industrial use? | 316L stainless steel for food; ATEX for chemicals. |
2. Determine Production Requirements
| Factor | Options | Recommendation |
|---|---|---|
| Output Speed | Low (<30 FPM), Medium (30-100 FPM), High (>100 FPM) | Single-head for small batches; multi-head for high speed. |
| Fill Volume | Small (1g-100g), Medium (100g-1kg), Large (1kg-10kg) | Larger fills may need heavier-duty augers. |
| Accuracy | ±1% (standard) vs. ±0.2% (high-precision) | Gravimetric (weight-based) augers for tighter tolerances. |
3. Select the Machine Type
| Type | Best For | Pros & Cons |
|---|---|---|
| Volumetric Auger | Free-flowing powders (salt, sugar) | ✅ Affordable, fast ⚠️ Accuracy ±0.5-1% (no weight feedback) |
| Gravimetric Auger | High-value products (pharma, spices) | ✅ ±0.1-0.3% accuracy ⚠️ Slower due to weight checks |
| Multi-Head Auger | High-speed production (e.g., 200+ FPM) | ✅ Scalable ⚠️ Higher upfront cost |
| Sanitary Auger | Food/pharma (GMP/FDA compliant) | ✅ Easy to clean ⚠️ Limited to non-abrasive materials |
4. Consider Additional Features
- Dust Control: Sealed systems for fine powders (e.g., milk powder)
- Quick-Change Augers: For multi-product lines (switch in <5 mins)
- Automation: Integration with conveyors, cappers, or labeling machines
